Ram Mount Base H-Bar Clamp 8M (RAM-B-367)

Motorcycle Handlebar Clamp Base Mount
Your motorcycle rides on rubber tires for grip and to soften the ride. Why should it be any different for your mounted electronics? With RAM's patented rubber ball and socket technology, the turn of a single knob grips the adjustment arm to a rubber ball designed to dampen shock and vibration. With RAM products, it's all grip and no slip plus protection for your valuable electronics. Simply place our easy to install ball base onto the motorcycle handlebar top clamp and you're done. After that, a world of mounting possibilities just opened up.

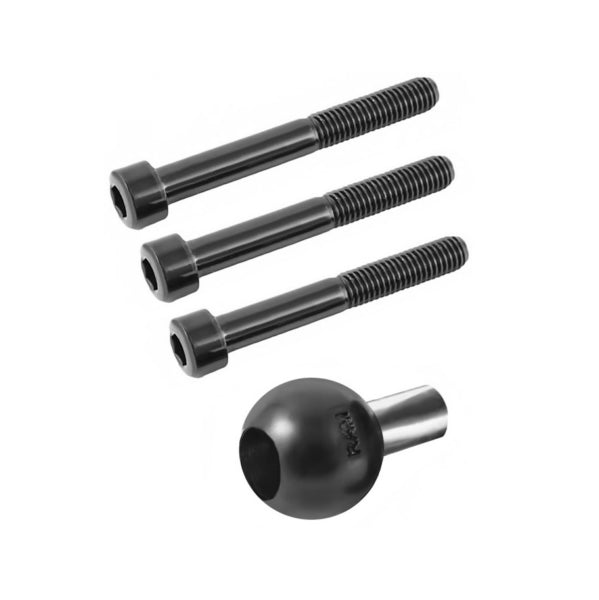

Included with Purchase:

• (1 QTY) 1" Rubber ball
• (1 QTY) M8 x 55 bolt (1.25 thread pitch)
• (1 QTY) M8 x 60 bolt (1.25 thread pitch)
• (1 QTY) M8 x 65 bolt (1.25 thread pitch)

To determine if these bolts are compatible with your motorcycle measure the bolt for the diameter and add 30mm to the length. If it matches one of the 55, 60, or 65 mm length, then you can use the appropriate bolt supplied with the mount. If it does not match, you may be able to source the correct length of bolt locally or from your BMW dealer. Be sure to use the correct torque spec when attaching the mount.

• Attachment Point: Motorcycle handlebar top clamp, any bike that uses an M8 threaded bolt.
• Material: Powder Coated Marine Grade Aluminum
• Ball Size: 1" Rubber Ball "B" Size

To obtain full support for your device:

• Step 1: Choose your ball carrier that suits your use. (handlebar, flat surface, etc...)
• Step 2: Select your sleeve for mounting ball. (Short, Standard, Standard )
• Step 3: Choose your medium suitable for your device.
